| Specification | Details |
|---|---|

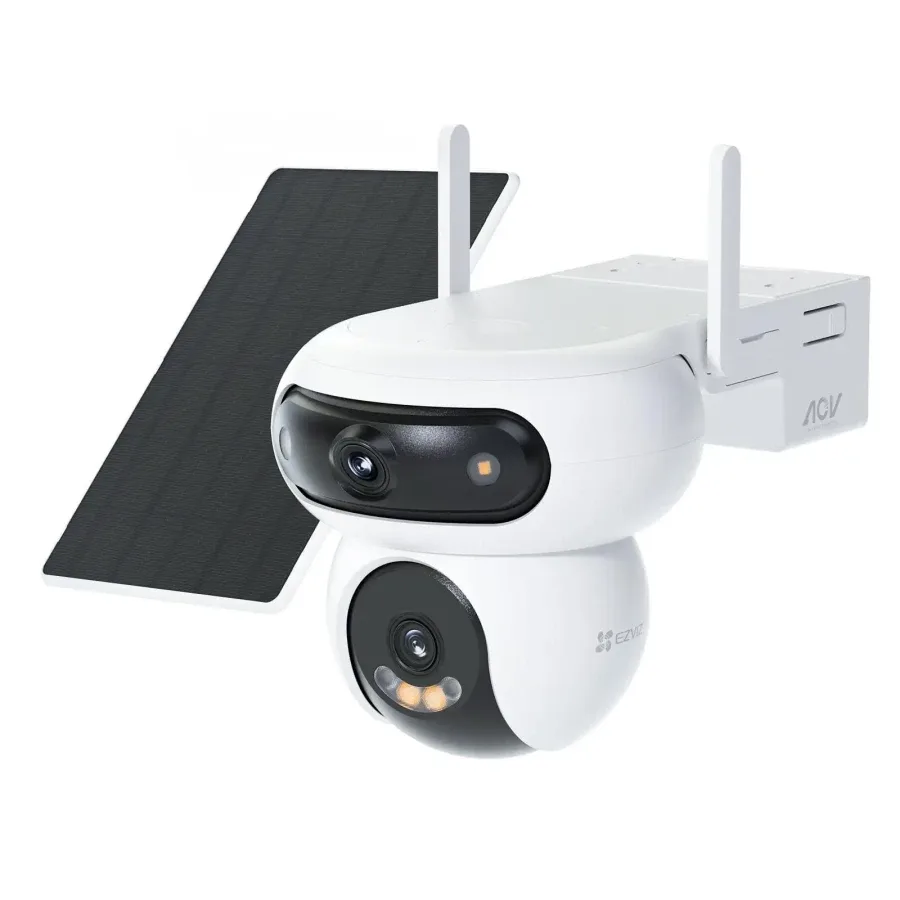

| Model | CS-HB90/SP-R100 (4MP + 4MP) |
| Camera Type | Dual-lens battery-powered Wi-Fi security camera with 8W solar panel |
| Resolution | 2K+ (2560 × 1440) per lens |
| Image Sensor | 1/3" 4MP Progressive Scan CMOS (each lens) |
| Lenses | Top: 2.8mm F1.2 • Bottom: 6mm F1.2 |
| Field of View | Top: 110° (Diagonal), 96° (Horizontal), 54° (Vertical) • Bottom: 60° (Diagonal), 52° (Horizontal), 28° (Vertical) |
| Pan & Tilt | Top: Pan 220°, Tilt 10° • Bottom: Pan 324°, Tilt 90° |
| Night Vision | Up to 35 m |
| Video Compression | H.265 / H.264 |
| Frame Rate | Up to 15 fps |
| AI Features | Human detection, vehicle detection, auto tracking |
| Audio | Two-way talk |
| Storage | microSD card up to 512 GB, CloudPlay support |
| Wi-Fi | Wi-Fi 6 (802.11ax), 2.4 GHz |
| Bluetooth | Yes |
| Security | WPA-PSK, WPA2 |
