| Specification | Details |
|---|---|

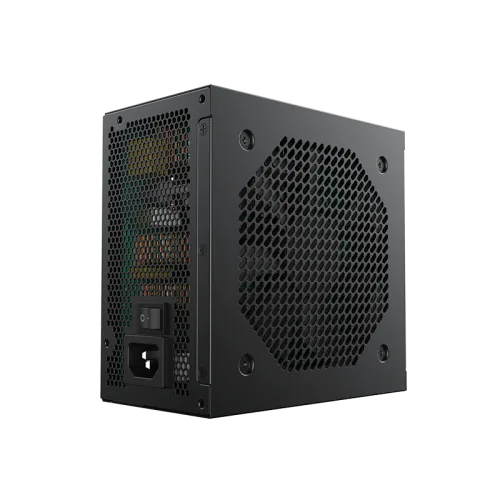

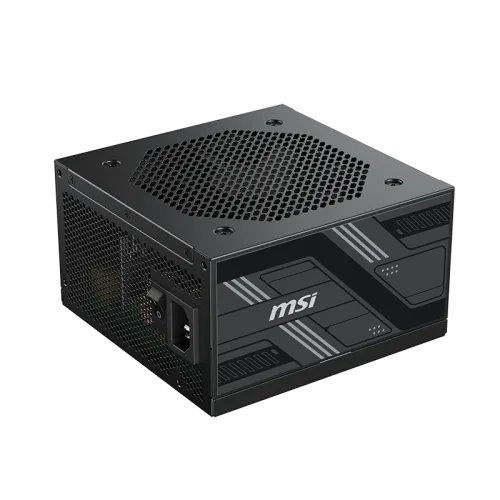

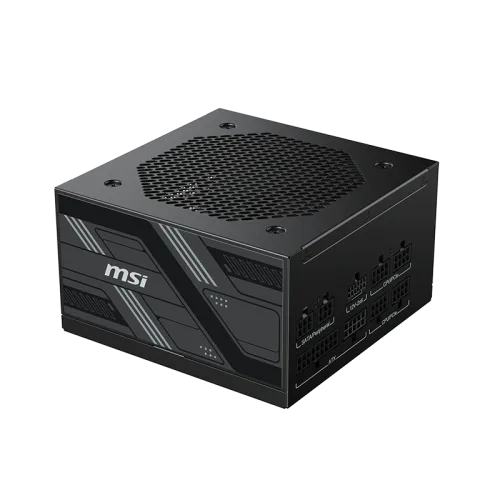

| Model Name | MAG A850LS PCIE5 |
| Total Wattage | 850W |
| Form Factor | ATX |
| Modular Type | Fully Modular |
| ATX Standard | ATX 3.1 |
| PCIe Standard | PCIe 5.1 (12V-2x6 Native Connector) |
| Efficiency Certification | 80 PLUS Gold (Up to 90% Efficiency) |
| Input Voltage | 100–240 VAC (Full Range) |
| Topology | LLC Full Bridge Topology with DC-DC Module Design |
| +12V Rail Rating | 70.5A (846W Single Rail) |
| Fan Size & Bearing | 120 mm Fluid Dynamic Bearing (FDB) |
| Protections | OCP, OVP, OPP, OTP, SCP, UVP |
| Dimensions (D x W x H) | 140 x 150 x 86 mm |

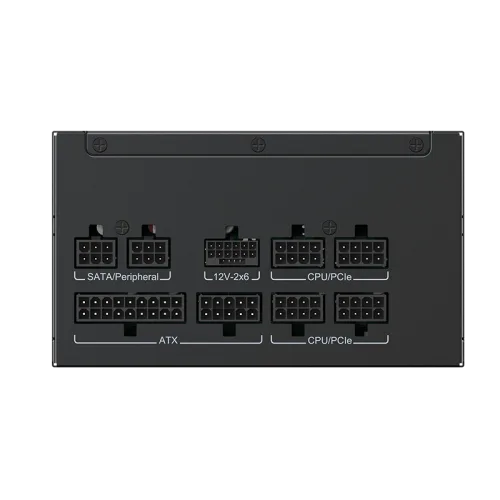

| Main Connectors | 1x ATX 24-Pin, 2x EPS/CPU 8-Pin (4+4) |
| GPU Connectors | 1x 12V-2x6 (16-Pin 600W), 4x PCIe 8-Pin (6+2) |
| SATA / Peripheral Connectors | 8x SATA, 4x Molex |
