| Specification | Details |
|---|---|

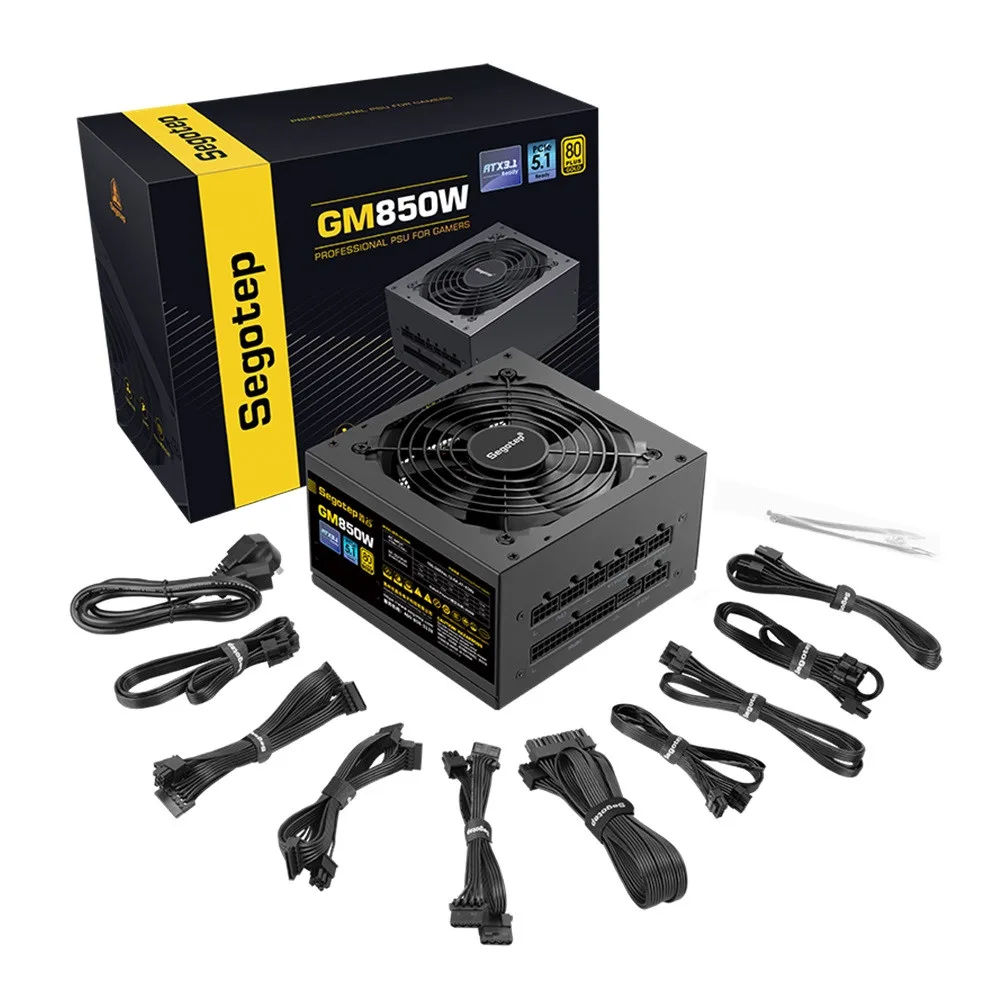

| Model | Segotep GM850W Gold Black |
| Form Factor | ATX 3.1 |
| Rated Power | 850W |
| 80 PLUS Certification | 80 PLUS Gold |
| Cybenetics Rating | ETA Gold / Lambda A- |
| Modular Design | Fully Modular |
| PCIe Standard | PCIe 5.1 Ready |
| GPU Connector | 1 × 12V-2x6 (600W) |
| Motherboard Connector | 1 × 24-pin (20+4) |
| CPU Connectors | 2 × 4+4-pin EPS |
| PCIe Connectors | 2 × 6+2-pin PCIe |
| SATA Connectors | 8 × SATA |
| Peripheral Connectors | 3 × 4-pin Molex |
| +12V Rail | Single Rail (70.8A) |
| PFC | Active PFC |
| Input Voltage | 100–240V AC |
| Input Frequency | 47–63Hz |
| Cooling Fan | 120mm FDB Fan |
| Fan Mode | Zero RPM / Semi-Fanless |
| Cable Type | Flat Black Cables |
| Dimensions | 140 × 150 × 85 mm |
| Color | Black |
| Protection Features | OCP, OVP, UVP, OPP, SCP |
