| Specification | Details |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| CPU Support | AMD Ryzen 7000 / 8000 / 9000 Series |
| Form Factor | Micro-ATX |
| VRM | 5+2+2 Digital VRM |
| Memory Type | DDR5 |
| RAM Slots | 2× DIMM |
| Max Memory | 128GB |
| Memory Speed | Up to DDR5-7600 OC |
| EXPO/XMP | Supported |
| PCIe x16 | 1× PCIe 4.0 x16 |
| PCIe x1 | 1× PCIe 3.0 x1 |
| M.2 Slots | 1× PCIe 4.0 x4 M.2 |
| SATA Ports | 4× SATA 6Gb/s |
| LAN | Realtek 2.5GbE |
| Wi-Fi | Wi-Fi 5 (802.11ac) |
| Bluetooth | Bluetooth 5.0 |

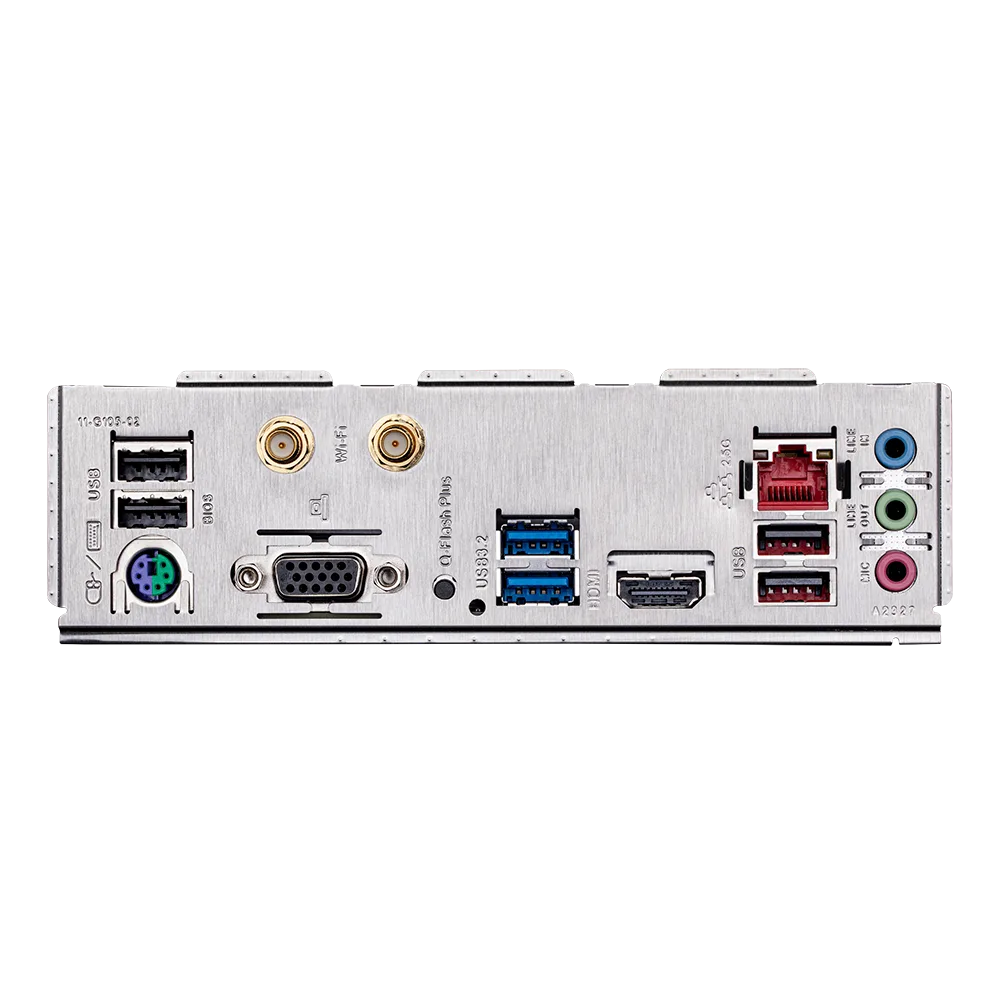

| Rear Video Outputs | HDMI + D-Sub/VGA |
| USB Rear | USB 3.2 Gen1 + USB 2.0 |
| Audio | Realtek HD Audio 7.1 |
| BIOS Flashback | Q-Flash Plus |
| RGB | RGB Fusion |
| Cooling | Smart Fan 6 |
| OS Support | Windows 10 / 11 64-bit |
