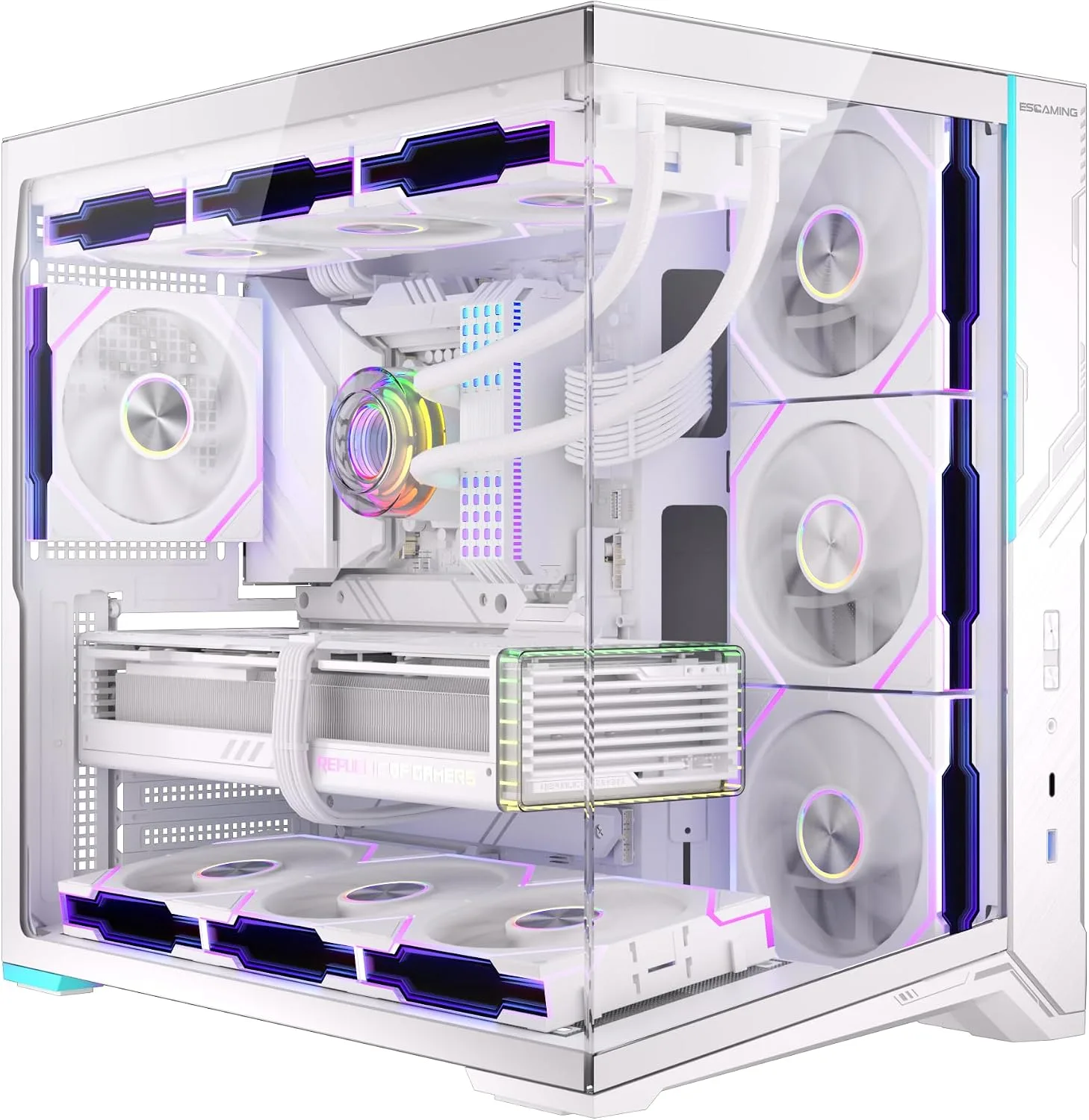

ESGaming Zero Max White

Case Specifications (ESGaming Zero Max White)

• Form Factor: Dual-Chamber Mid-Tower / Full-Tower.

• Color: Pure Arctic White (Exterior, interior chassis, and fan frames).

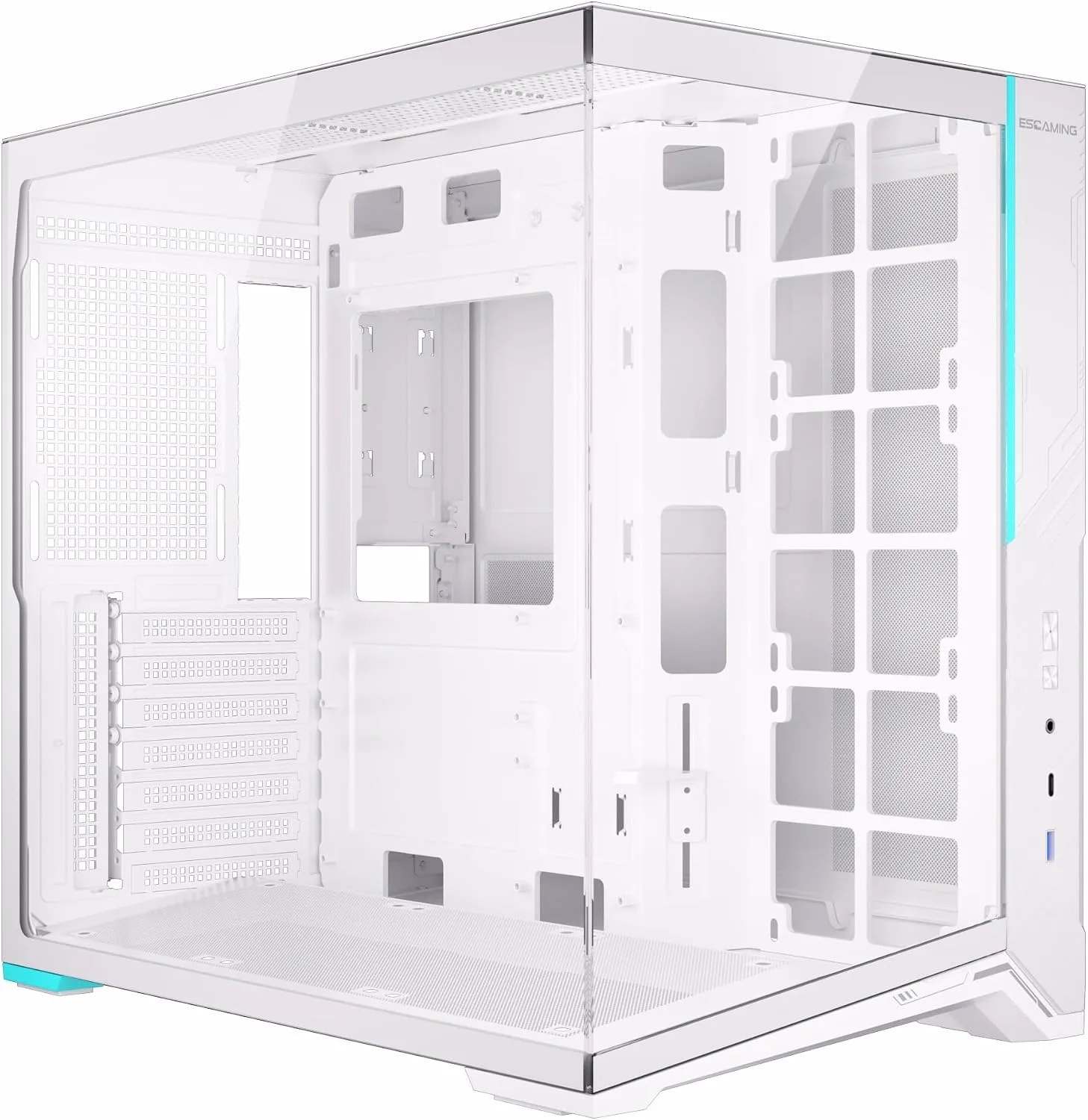

• Glass Panels: Dual Tempered Glass (Front & Side) with a Seamless Corner (no metal pillar between panels) for an uninterrupted 270° panoramic view.

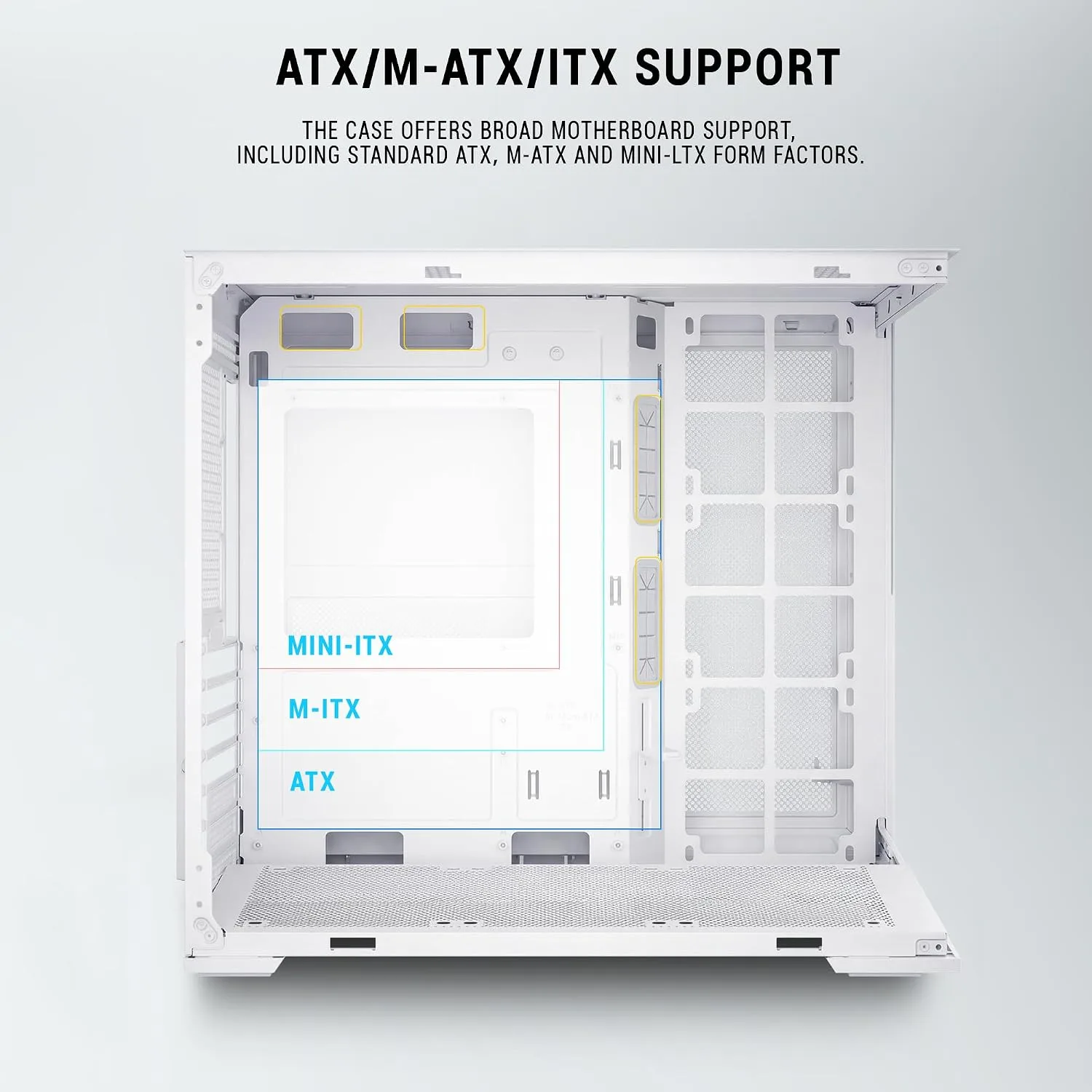

• Motherboard Support: ATX, Micro-ATX, Mini-ITX (also supports back-connect motherboards like ASUS BTF and MSI Project Zero).

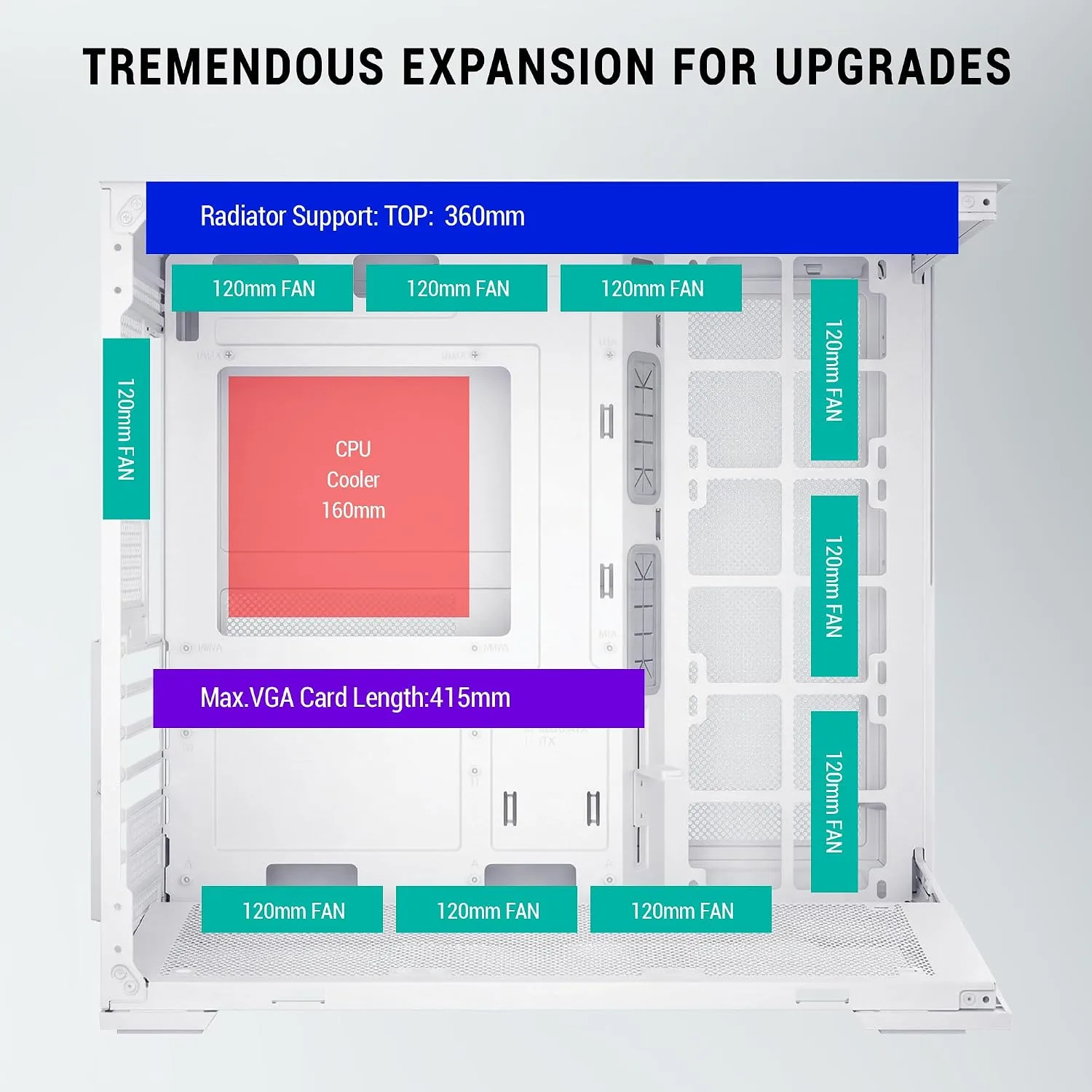

• Cooling Layout:

• Top: Up to 360mm radiator / 3× 120mm fans.

• Side: Up to 360mm radiator / 3× 120mm intake fans.

• Bottom: 3× 120mm intake fans (direct GPU cooling).

• Rear: 1× 120mm exhaust fan.

• Clearance:

• GPU Length: Up to 400mm–420mm (fits RTX 4090 / RTX 5080).

• CPU Cooler Height: Up to 175mm.

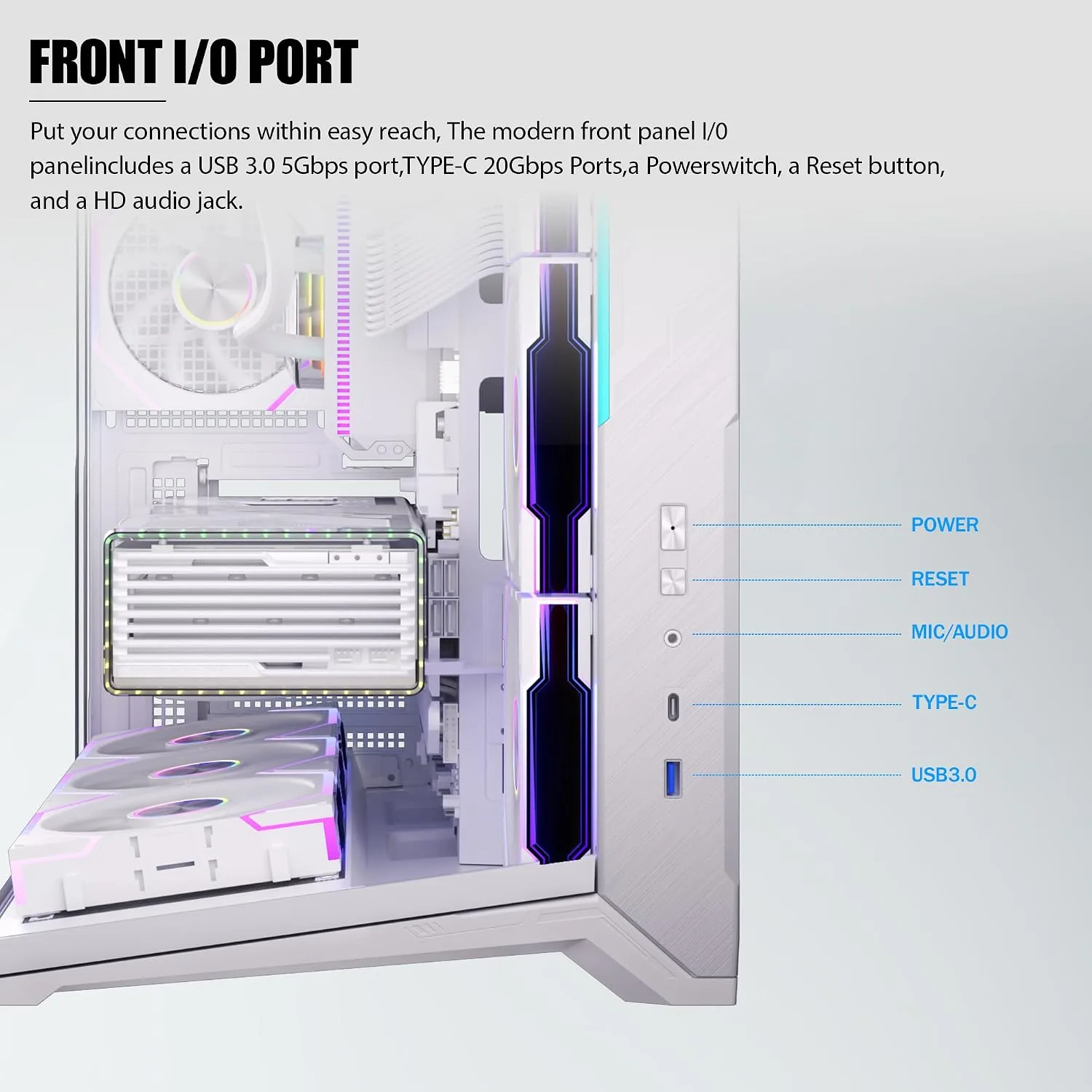

• Front I/O: 1× USB-C, 1× USB 3.0, HD Audio Jack.

Key Highlights

1. Panoramic Showcase: The pillarless glass design makes your components look like they are displayed in a showroom aquarium.

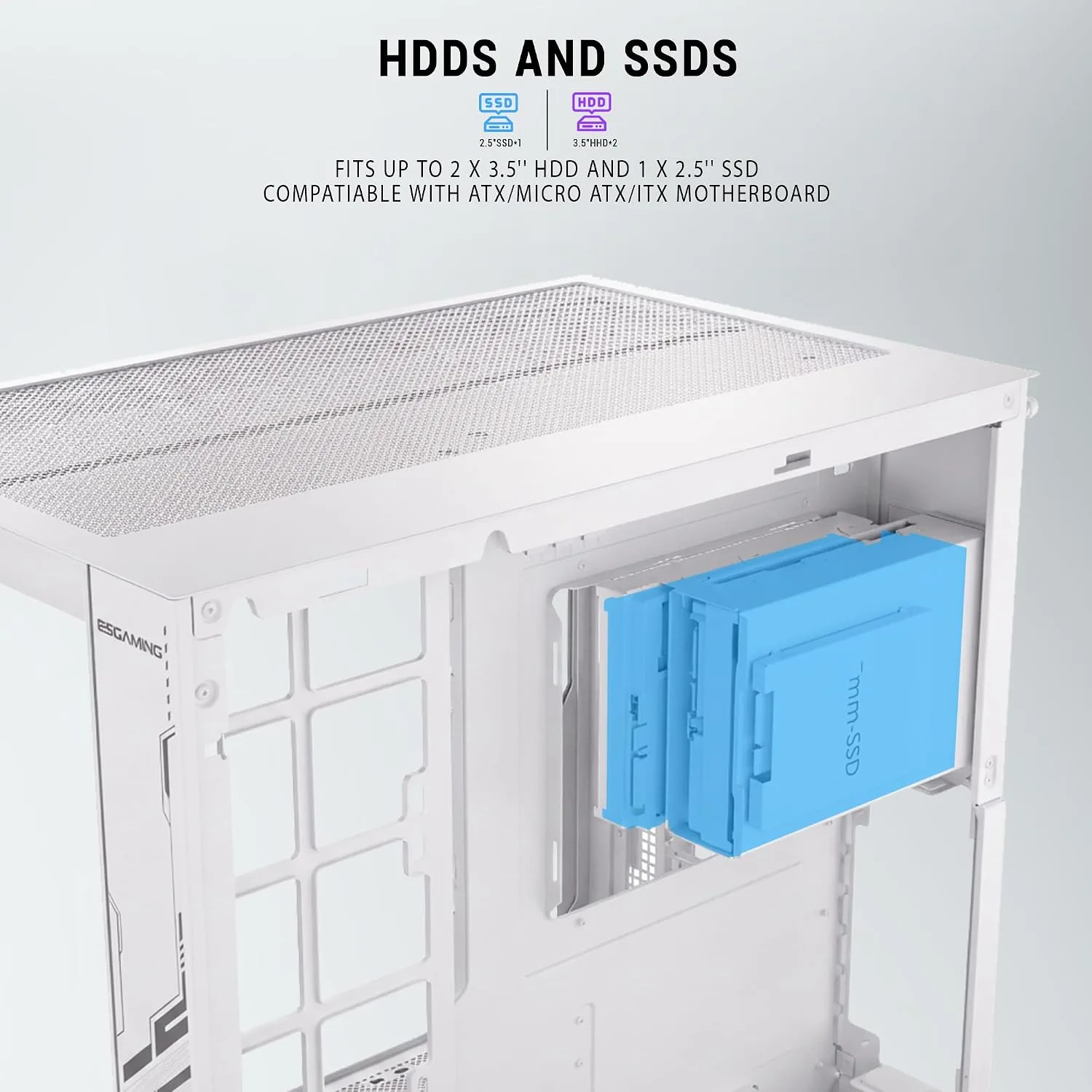

2. Dual-Chamber Cable Management: Places the power supply and storage drives behind the motherboard tray, hiding all cable clutter out of view.

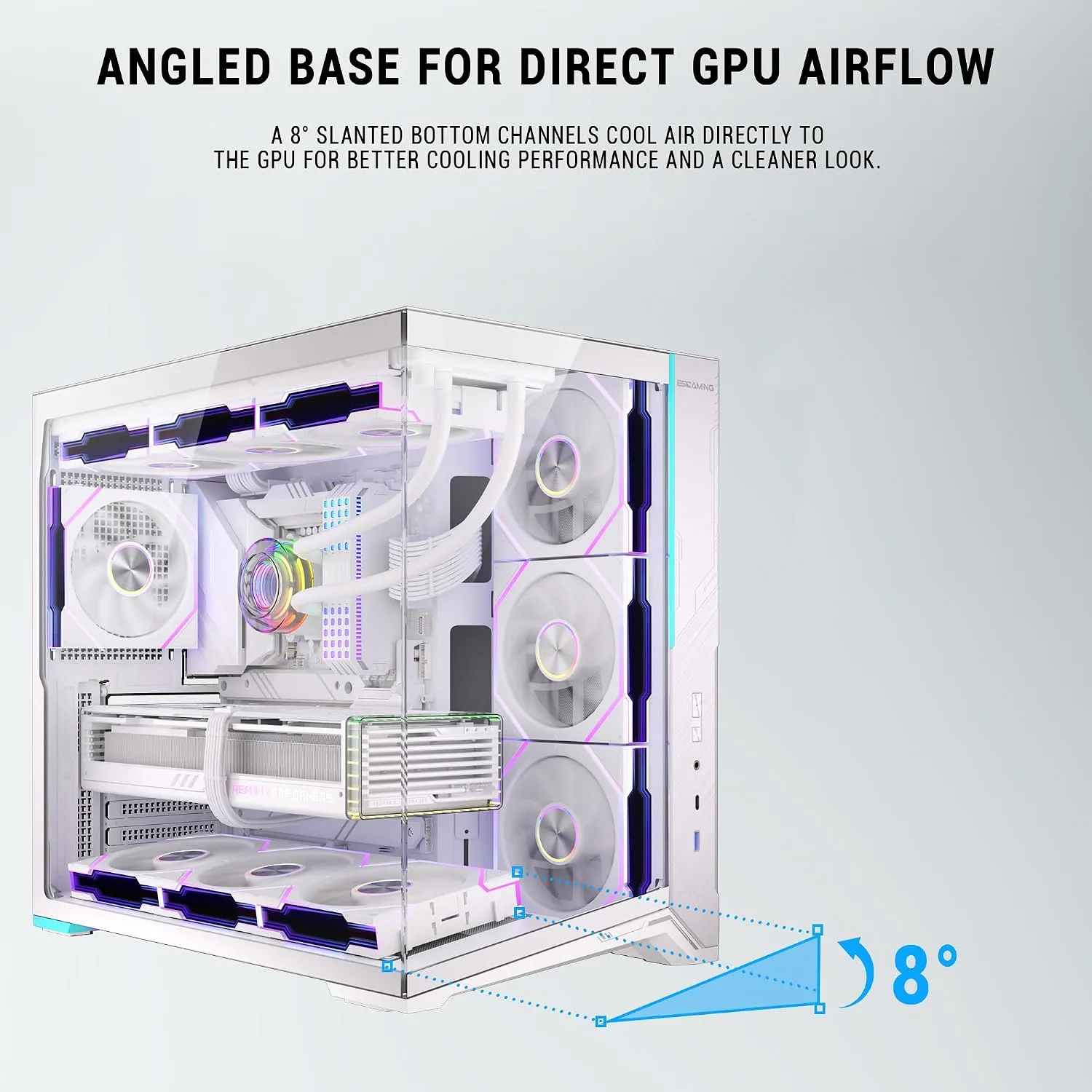

3. Bottom-to-Top Airflow: Direct air intake from the bottom blowing straight into the graphics card helps keep heavy GPUs significantly cooler under load.
