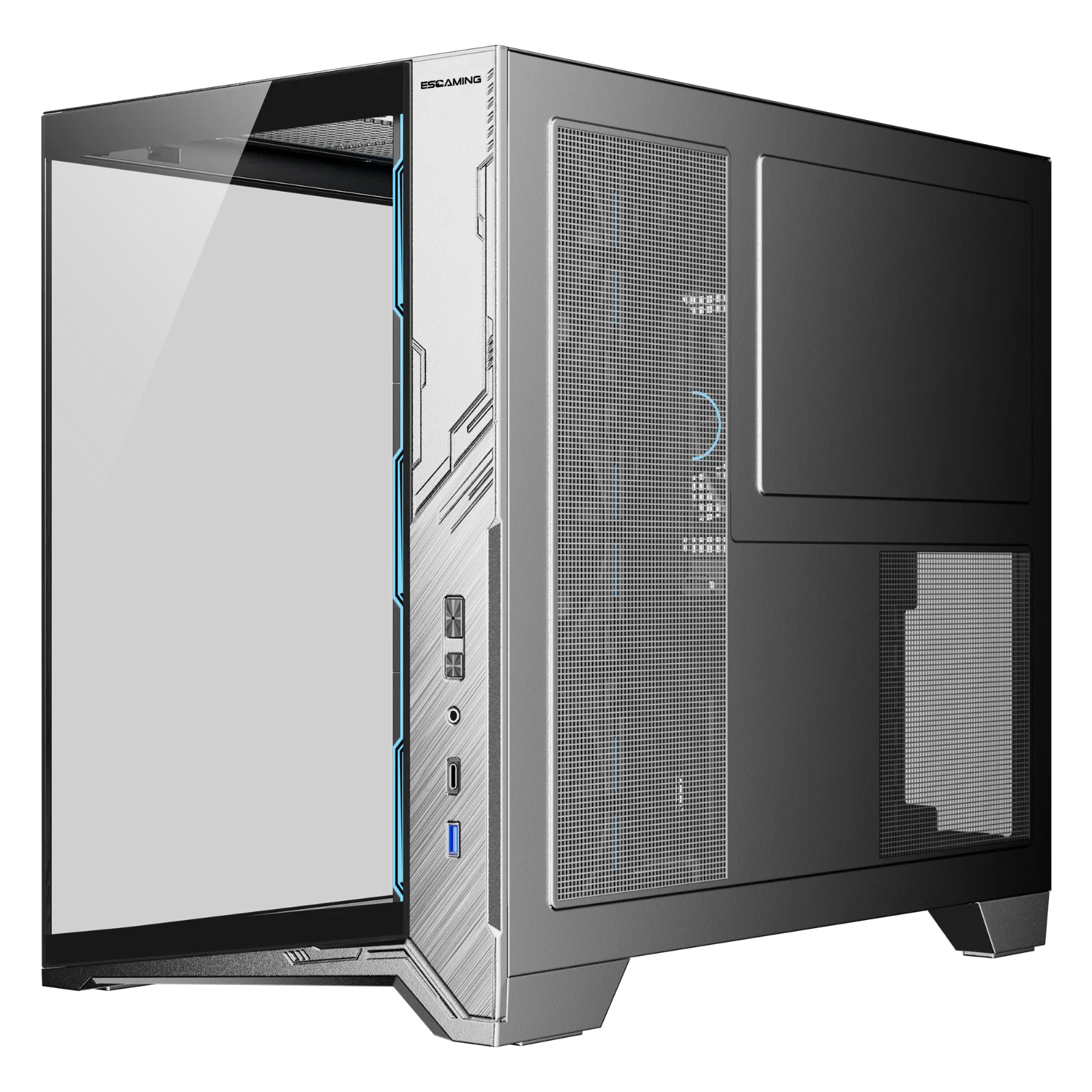

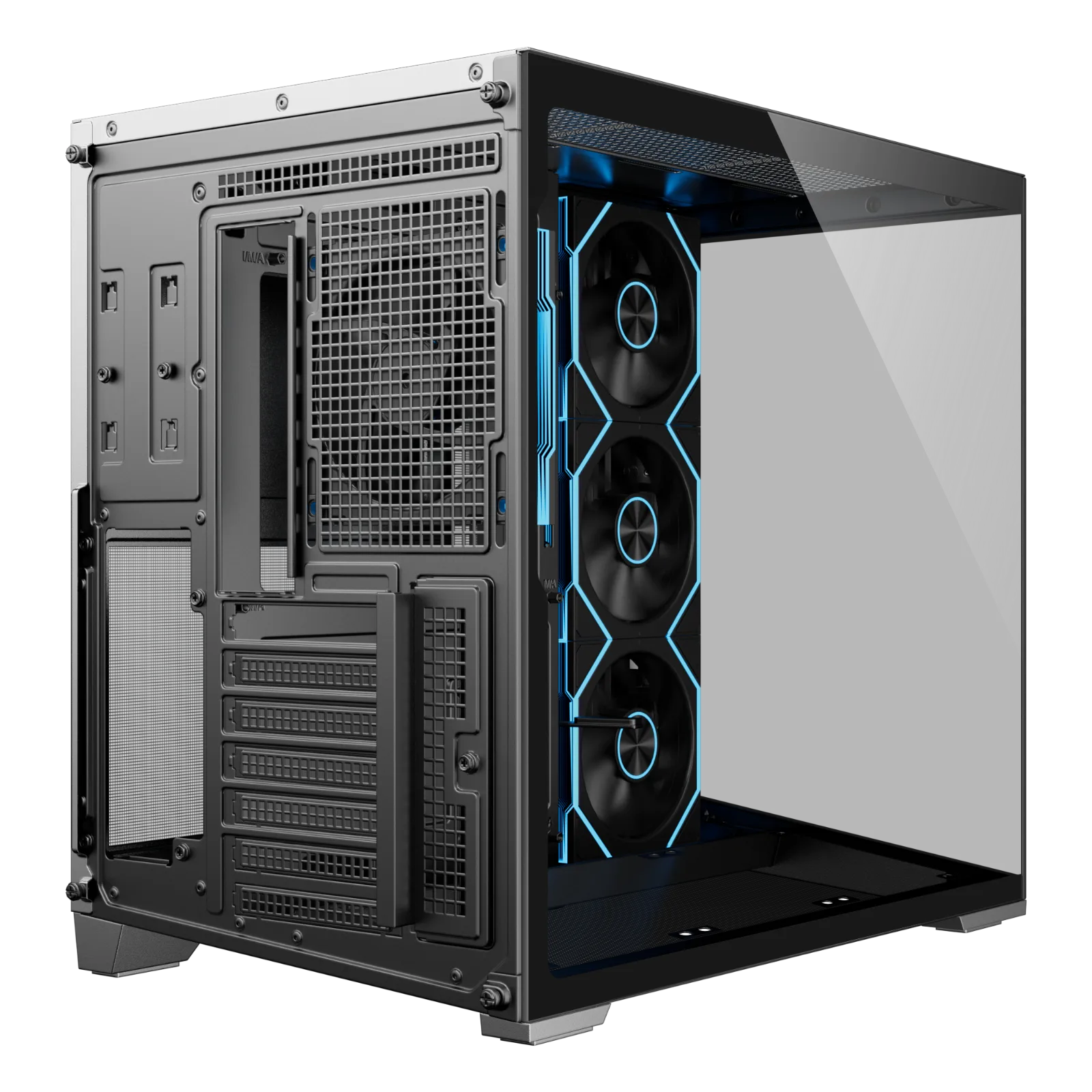

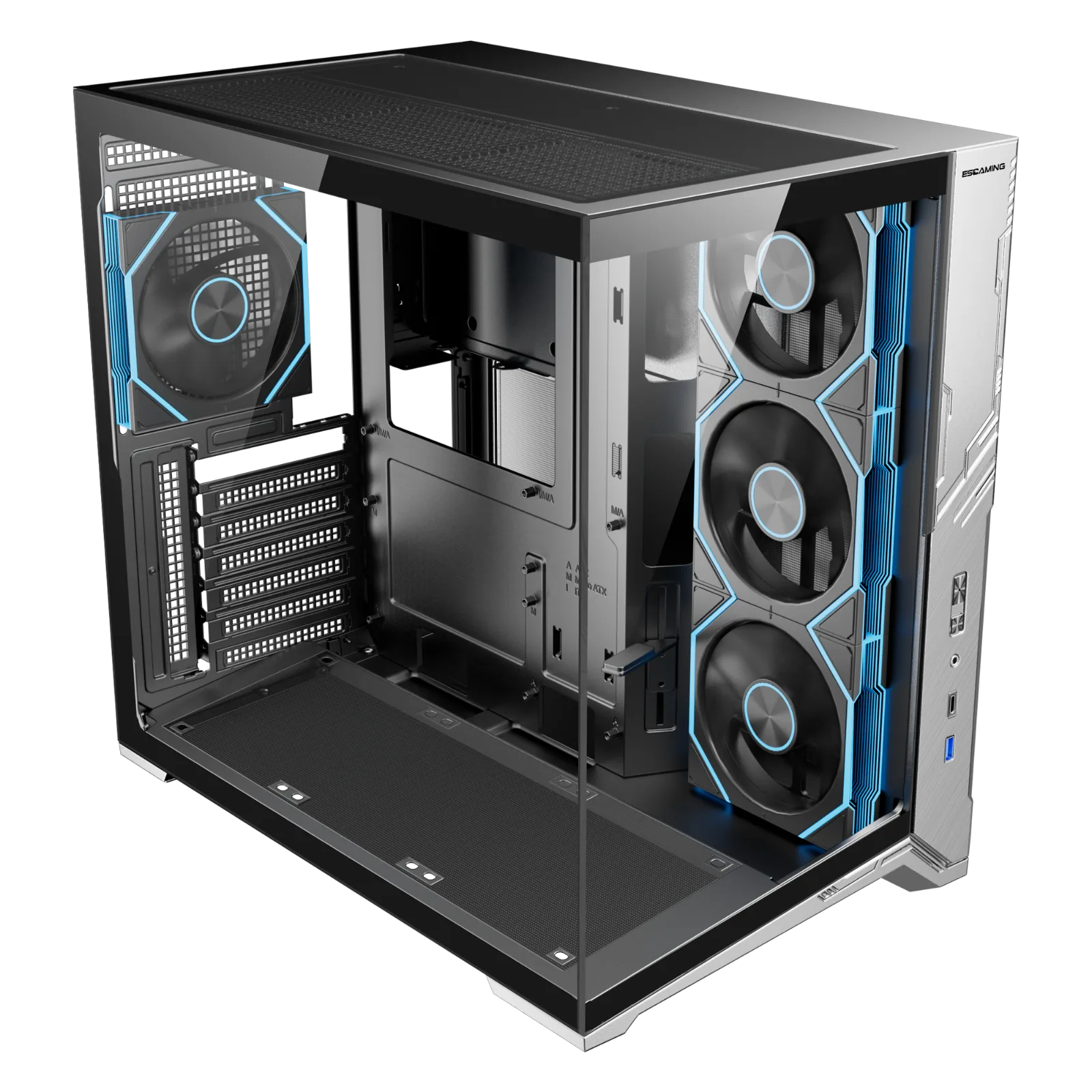

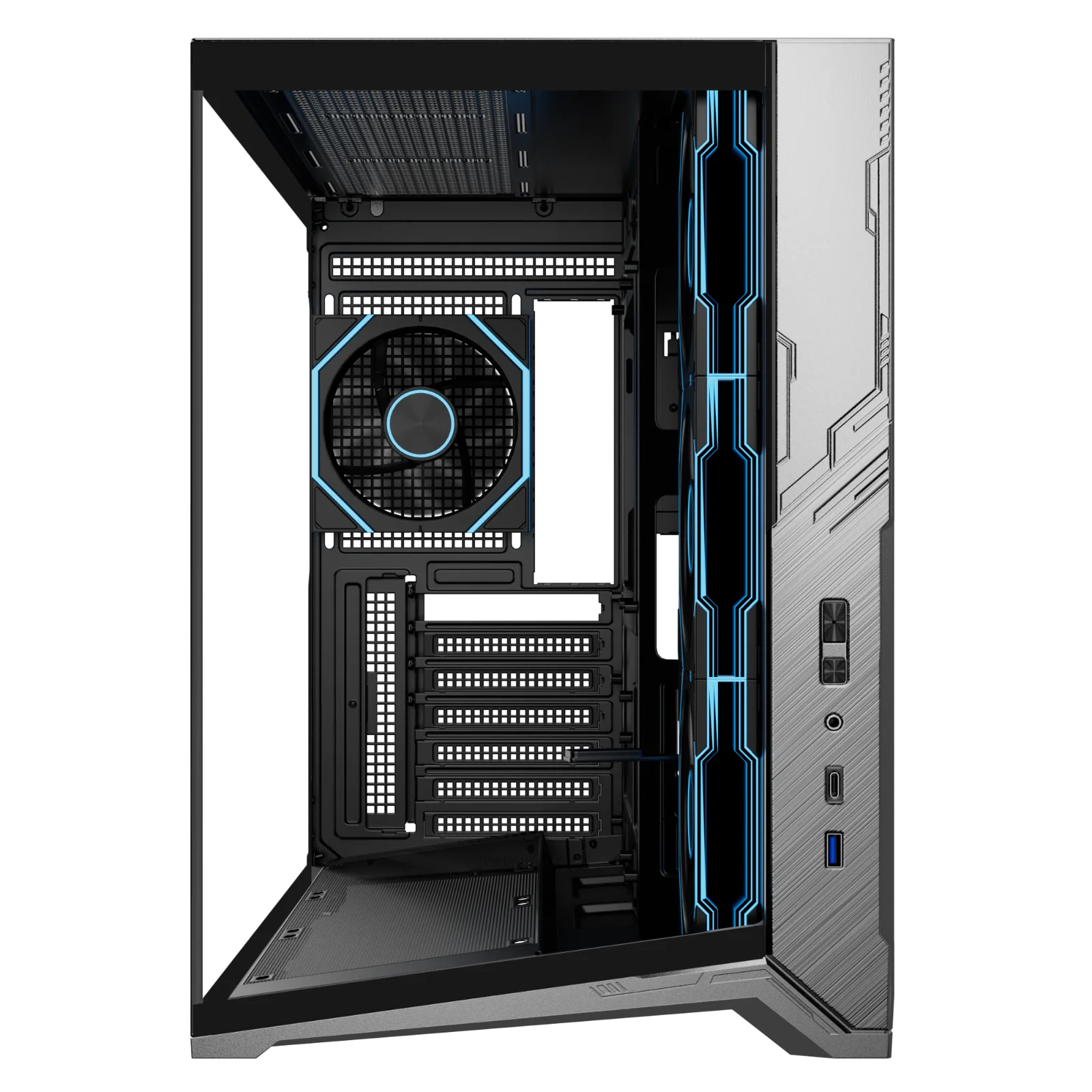

ESGaming Zero Max grey

To confirm whether your CPU cooler and GPU will fit inside the ESGaming Zero Max White case, we need to check their specific dimensions against the case clearance specifications:

ESGaming Zero Max White Clearances

• Max GPU Length: 400 mm – 420 mm
• Max CPU Cooler Height: 175 mm
• Max PSU Length: 200 mm
• Top Radiator Support: 240mm / 280mm / 360mm (Up to 52mm combined radiator + fan thickness)

How to Check Your Components:

1. For Your GPU:

• Check your GPU's specs for Length (mm). As long as it is under 400 mm, it will fit comfortably without interfering with side intake fans or front glass.
• Example: Even massive triple-fan cards like the RTX 4090 / RTX 5080 (typically ~330 mm – 355 mm) fit with plenty of breathing room.

2. For Air CPU Coolers:

• Check your cooler's Height (mm). It must be 175 mm or less.
• Example: Large dual-tower coolers like the Noctua NH-D15 (165 mm) or DeepCool AK620 (160 mm) fit easily.

3. For Liquid Coolers (AIO):

• A 240mm, 280mm, or 360mm radiator easily mounts to the top or side panel.
