| Specification | Value |
|---|---|

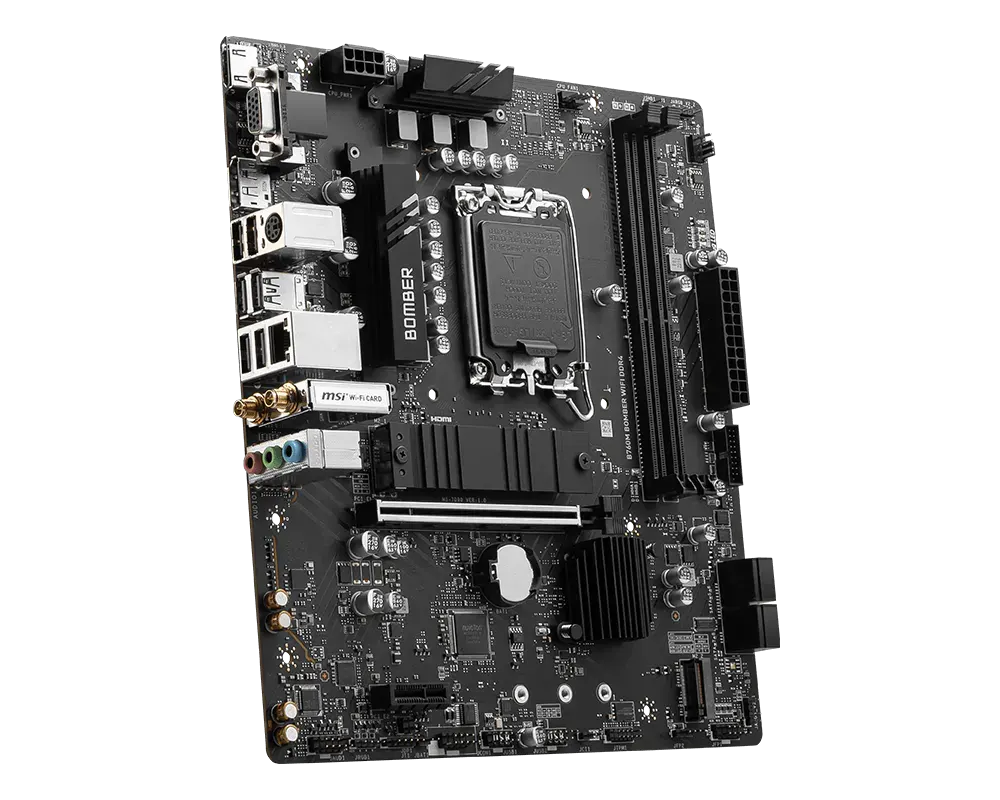

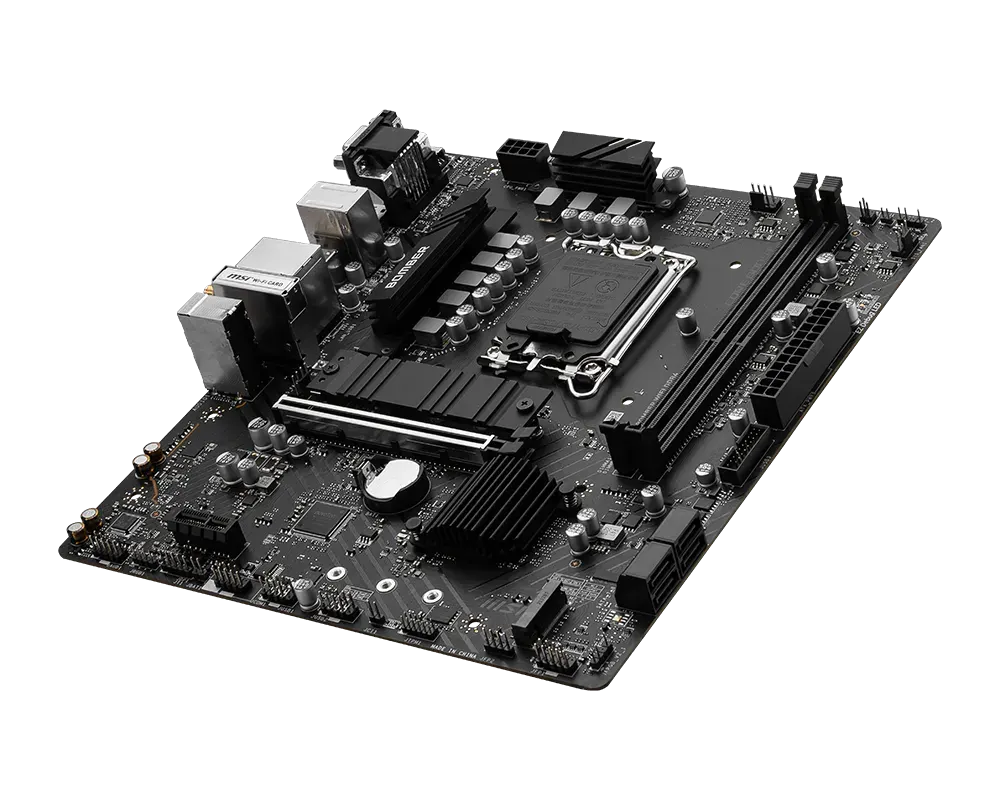

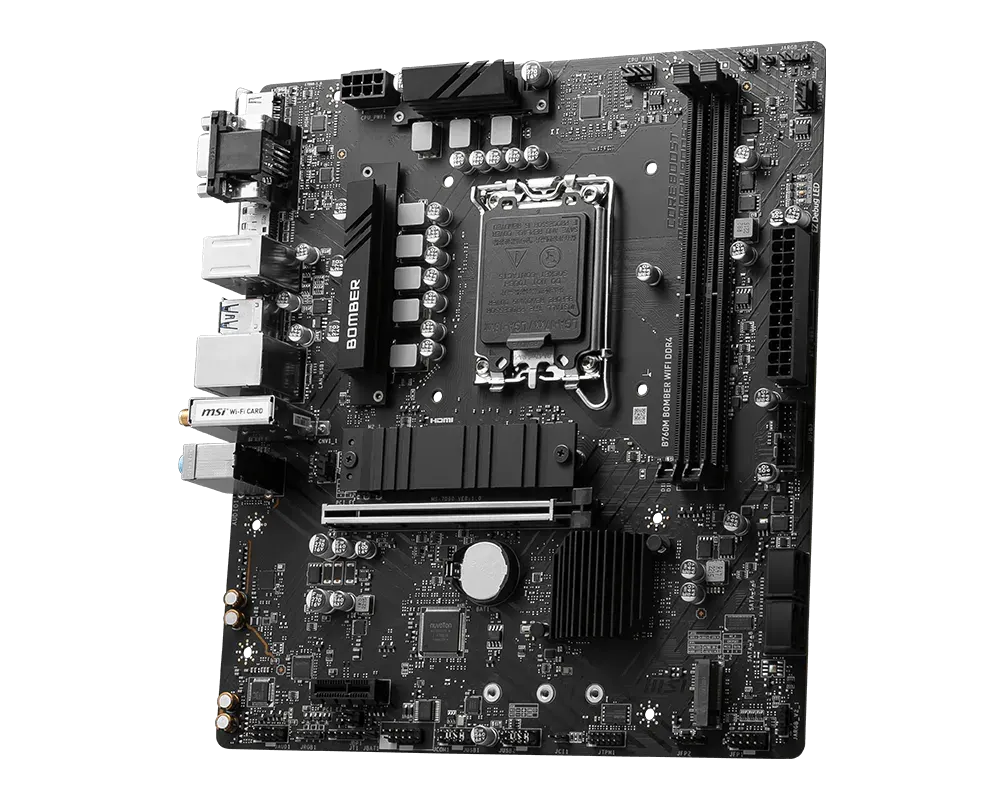

| Product Name | MSI B760M BOMBER WIFI DDR4 |
| Form Factor | Micro-ATX (211 mm × 243.84 mm) |
| CPU Socket | Intel LGA 1700 |
| CPU Support | 14th, 13th & 12th Gen Intel Core, Pentium Gold, Celeron Processors |
| Chipset | Intel B760 |
| Memory Slots | 2 × DDR4 DIMM Slots (Dual Channel) |
| Memory Capacity | Max 64GB |
| Memory Speed | Up to 4800+(OC) MHz |
| Wireless / Bluetooth | Intel Wi-Fi 6E + Bluetooth 5.3 |
| Graphics Outputs | 1 × HDMI 2.1, 1 × DisplayPort 1.4, 1 × VGA |
| Expansion Slots | 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 |
| Storage (M.2) | 2 × M.2 slots (PCIe 4.0 x4 mode) |
| Storage (SATA) | 4 × SATA 6Gb/s ports |
| Ethernet | Realtek 2.5Gb Ethernet |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |

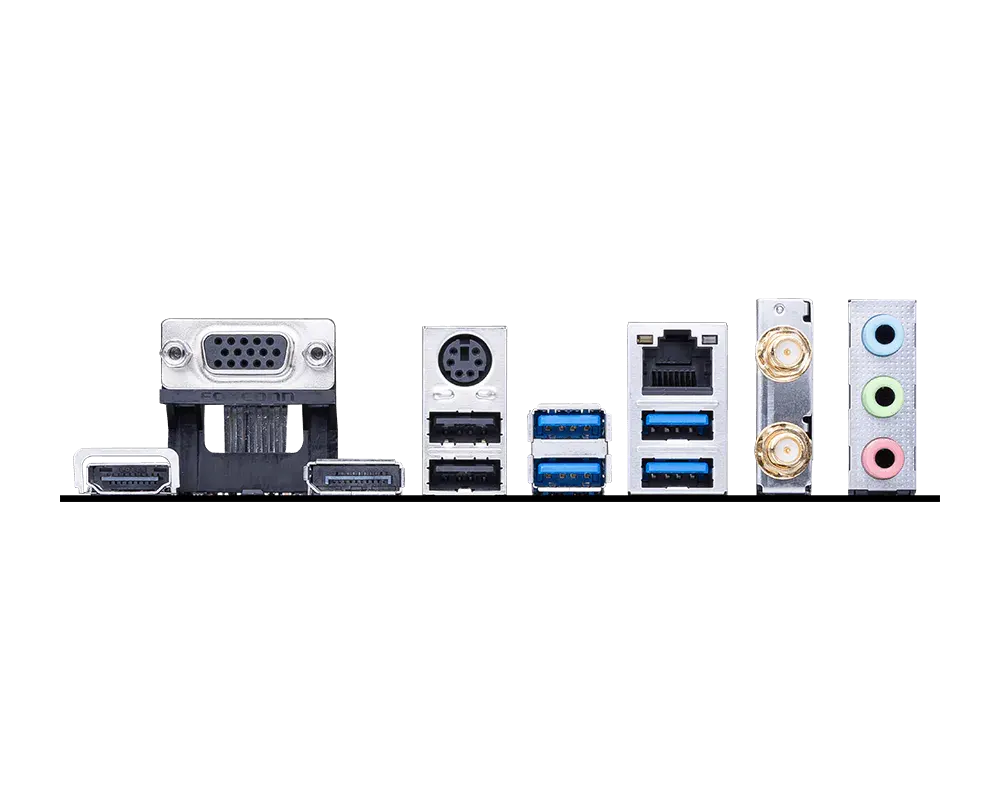

| USB Ports (Rear) | 4 × USB 3.2 Gen 1 (Type-A), 2 × USB 2.0 (Type-A) |
| USB Ports (Front Header) | 1 × USB 3.2 Gen 1 header (2 ports), 2 × USB 2.0 headers (4 ports) |
| Features | Core Boost, Memory Boost, 2.5G LAN + Wi-Fi 6E, EZ Debug LED |
| RGB Header | 1 × 4-pin RGB LED connector, 1 × 3-pin Rainbow A-RGB LED connector |
