| Specification | Details |
|---|---|
| Form Factor | ATX |
| Chipset | AMD X870 |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen 7000 / 8000 / 9000 Series |
| Memory Slots | 4× DDR5 DIMM |
| Max Memory | 256GB |
| Memory Speed | DDR5 8400+ MT/s (OC) |
| Memory Profiles | AMD EXPO |
| PCIe x16 Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 1× PCIe 3.0 x1 |
| M.2 Slots | 4× M.2 (2× PCIe 5.0 + 2× PCIe 4.0) |
| SATA Ports | 4× SATA 6Gb/s |
| LAN | Realtek 5GbE LAN |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| USB4 | 2× USB4 40Gbps Type-C |

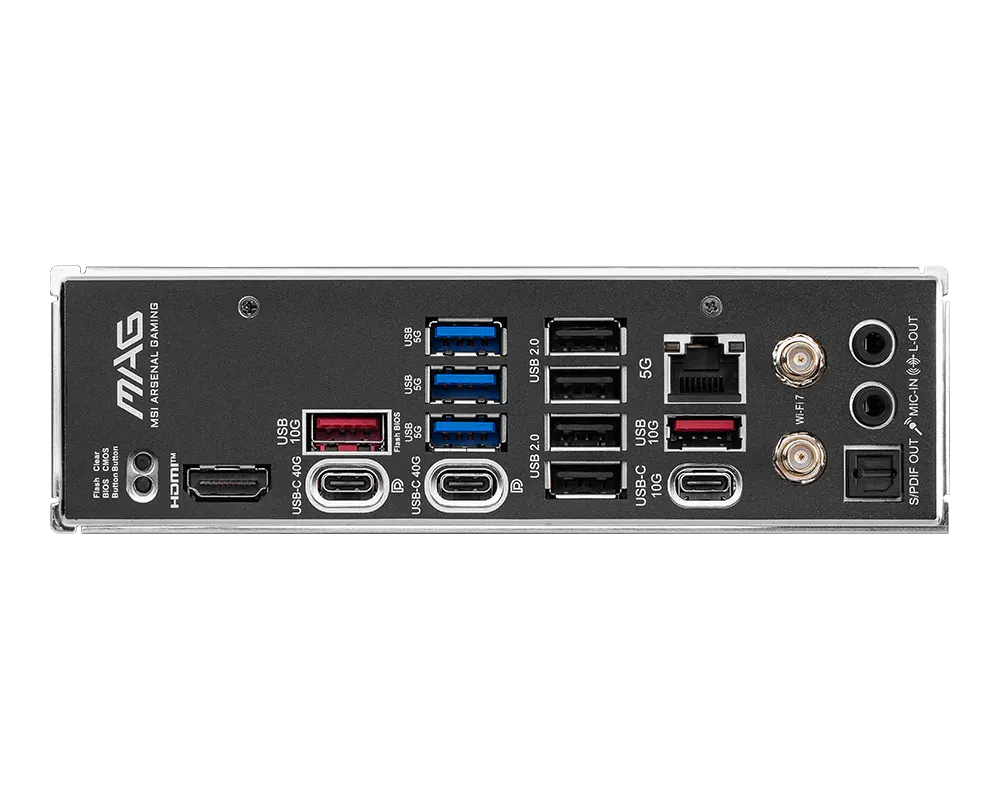

| Rear USB | USB4 40Gbps, USB 10Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A, USB 2.0 |
| Front USB | USB 20Gbps Type-C, USB 5Gbps, USB 2.0 |
| Audio Codec | Realtek ALC4080 |
| Audio Output | 7.1 Channel + Optical S/PDIF |
| VRM Power | High-end VRM suitable for Ryzen 9 CPUs |
| Fan Headers | 1× CPU, 1× Pump, 6× System Fan |
| RGB Headers | 3× ARGB Gen2, 1× RGB |
| Debug Features | EZ Debug LEDs + EZ Digit Debug Display |
| BIOS Features | Flash BIOS Button, Clear CMOS Button |
| Display Outputs | HDMI 2.1, 2× DisplayPort over USB4 |
| Operating System | Windows 11 64-bit |
| Dimensions | 304.8 × 243.84 mm |
