للتجميعات فقط
متوفر فقط كجزء من تجميعة جهاز كمبيوتر كاملة — لا يُباع بشكل منفصل.
افتح أداة التجميع واختر هذه القطعة ضمن تجميعتك، وسيظهر لك سعر الجهاز الكامل قبل إتمام الطلب.
| Specification Details | Category |
|---|---|

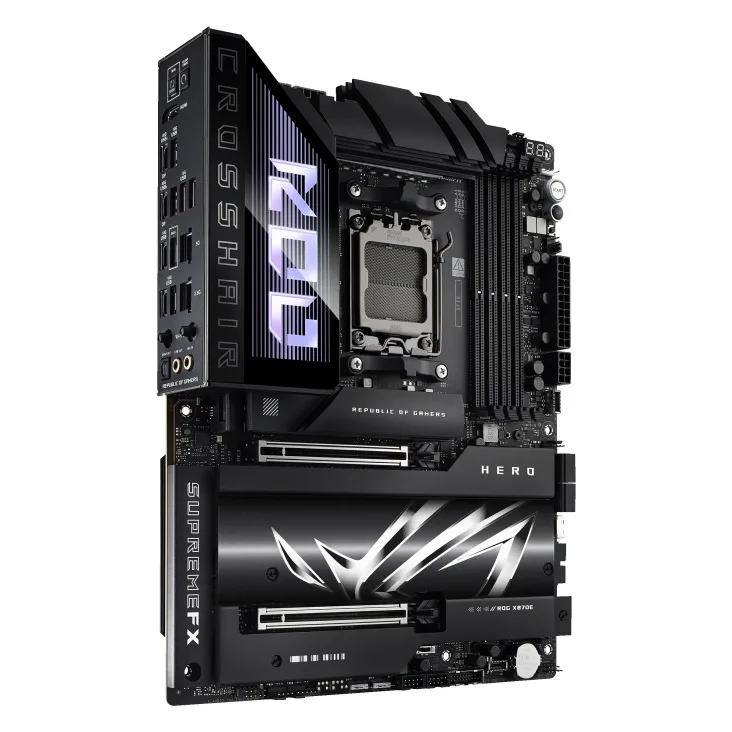

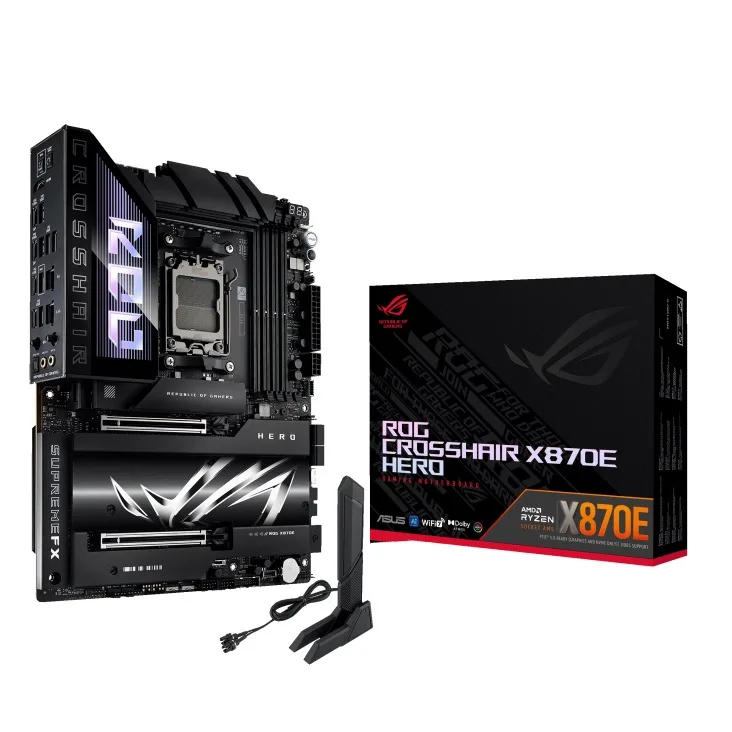

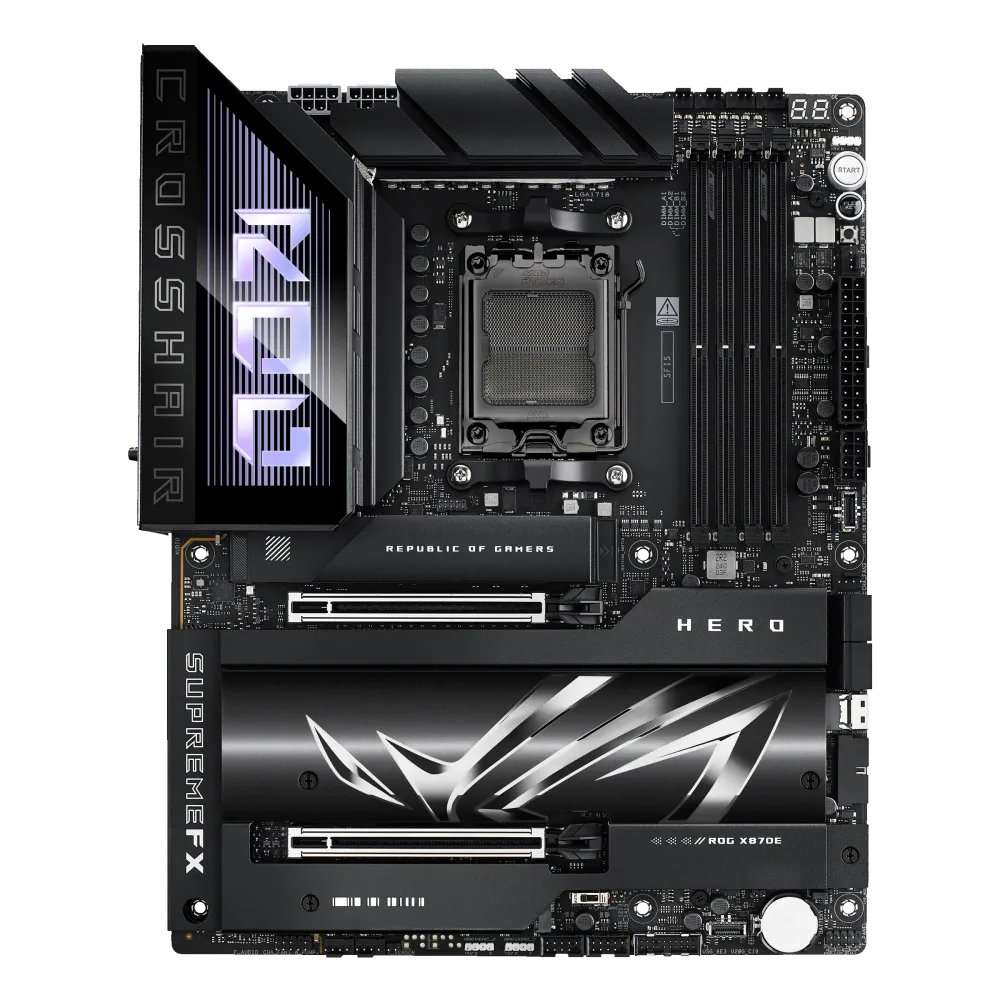

| ASUS ROG CROSSHAIR X870E HERO | Model Name |
| ATX (30.5 cm x 24.4 cm) | Form Factor |
| AMD Socket AM5 | CPU Socket |
| AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors | Supported Processors |
| AMD X870E | Chipset |
| 18+2+2 Power Stages (rated for 110A per stage) | VRM / Power Design |
| 4 x DDR5 DIMM slots (Dual Channel, up to 192 GB) / Supports AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP) | Memory Support |
| 2 x USB4® 40Gbps Type-C® (supports DisplayPort 1.4a & 8K @ 60 Hz output), 1 x HDMI 2.1 (up to 4K @ 60 Hz) | Graphics Outputs |
| 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes with PCIe Slot Q-Release Slim) | Expansion Slots |
| 3 x M.2 PCIe 5.0 x4 (M.2_1, M.2_2, M.2_3) / 2 x M.2 PCIe 4.0 x4 (M.2_4, M.2_5) | Storage (M.2 Slots) |
| 4 x SATA 6Gb/s | SATA Ports |
| RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSDs | RAID Support |
| Wi-Fi 7 (802.11be, 320MHz bandwidth, 2.4/5/6 GHz bands), Bluetooth® 5.4 | Wireless & Bluetooth |
| 1 x Realtek 5Gb Ethernet, 1 x Intel® 2.5Gb Ethernet | Ethernet (LAN) |
| ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 + ESS® ES9219 QUAD DAC (120 dB SNR playback, S/PDIF Out) | Audio |

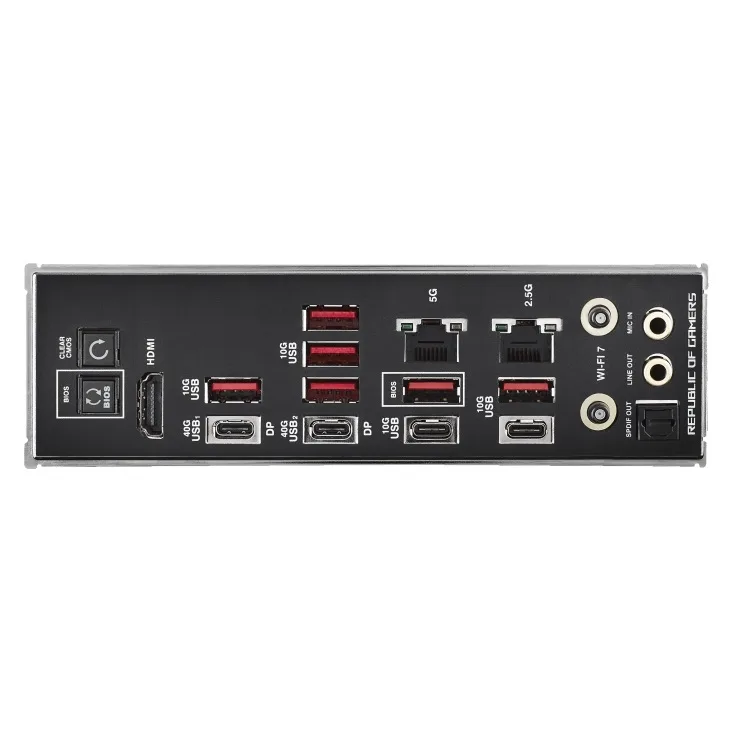

| 2 x USB4® 40Gbps Type-C®, 2 x USB 20Gbps Type-C® (one supports up to 60W Quick Charge 4+), 6 x USB 10Gbps Type-A, 2 x USB 10Gbps Type-C®, 1 x HDMI, 1 x Realtek 5Gb LAN, 1 x Intel 2.5Gb LAN, 1 x ASUS Q-Antenna, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF Out, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button | Back Panel Connectors |
| 1 x Front USB 20Gbps Type-C® (supports up to 60W Quick Charge 4+), 2 x Front USB 5Gbps headers (4 ports), 2 x USB 2.0 headers (4 ports), 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 1 x W_PUMP+, 4 x 4-pin Chassis Fan headers, 3 x Addressable Gen 2 RGB headers, 1 x SlimSAS connector | Internal Headers |
| PCIe Slot Q-Release Slim, M.2 Q-Release, M.2 Q-Latch, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ | EZ-DIY Features |
| Massive VRM Heatsinks with integrated I/O cover, 3D Vapor Chamber, 5 x M.2 Heatsinks with backplates, High-conductivity thermal pads | Thermal Solution |
| 256 Mb Flash ROM, UEFI AMI BIOS | BIOS |
| Support for Windows 11 64-bit | Operating System |
