للتجميعات فقط
متوفر فقط كجزء من تجميعة جهاز كمبيوتر كاملة — لا يُباع بشكل منفصل.
افتح أداة التجميع واختر هذه القطعة ضمن تجميعتك، وسيظهر لك سعر الجهاز الكامل قبل إتمام الطلب.
| Specification Details | Category |
|---|---|

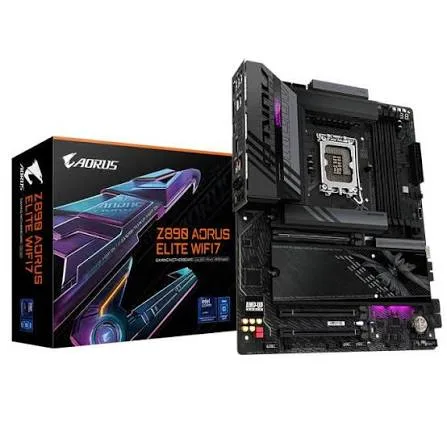

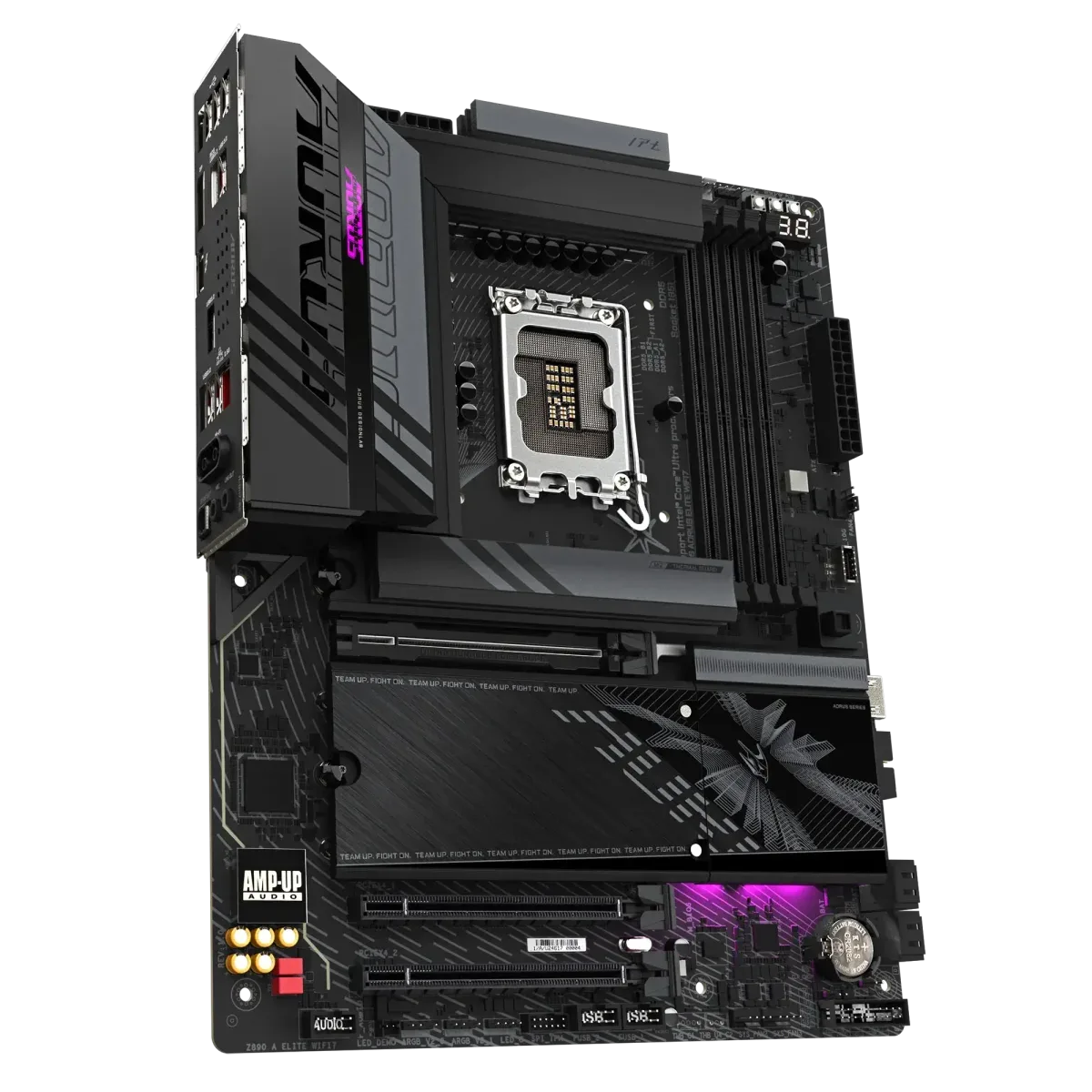

| Gigabyte Z890 AORUS ELITE WIFI7 | Model Name |
| ATX (30.5 cm x 24.4 cm) | Form Factor |
| Intel® Socket LGA1851 | CPU Socket |
| Intel® Core™ Ultra Processors (Series 2) | Supported Processors |
| Intel® Z890 | Chipset |
| Direct 16+1+2 Phases Digital VRM Design (80A SPS) | VRM / Power Design |
| 4 x DDR5 DIMM slots (Dual Channel, up to 256 GB) / Supports Intel® XMP 3.0 profiles and CUDIMM memory modules | Memory Support |
| 2 x Intel® Thunderbolt™ 4 / USB4® Type-C® (up to 5120x3200 @ 60 Hz with DP 2.1), 1 x HDMI 2.1 (up to 4096x2160 @ 60 Hz), 1 x Front panel HDMI port (up to 1920x1080 @ 30 Hz for Sensor Panel Link) | Graphics Outputs |
| 1 x PCIe 5.0 x16 slot (PCIEX16 with PCIe UD Slot X), 2 x PCIe 4.0 x16 slots (running at x4 mode) | Expansion Slots |
| 1 x M.2 PCIe 5.0 x4/x2 (M2A_CPU) / 3 x M.2 PCIe 4.0 x4/x2 (M2P_SB, M2Q_SB, M2M_SB) | Storage (M.2 Slots) |
| 4 x SATA 6Gb/s | SATA Ports |
| RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSDs / RAID 0, RAID 1, RAID 5, and RAID 10 for SATA drives | RAID Support |
| Wi-Fi 7 (802.11be, 320MHz band, 2.4/5/6 GHz carrier bands), Bluetooth® 5.4 | Wireless & Bluetooth |
| Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps) | Ethernet (LAN) |
| Realtek® ALC1220 HD Audio Codec (High Definition, 2/4/5.1/7.1-channel, S/PDIF Out) | Audio |
| 2 x Thunderbolt™ 4 / USB4® Type-C®, 4 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 1 x HDMI, 2 x Wi-Fi Antenna connectors, 1 x RJ-45 LAN, 1 x Optical S/PDIF Out, 2 x Audio jacks, 1 x Q-Flash Plus button | Back Panel Connectors |
| 1 x Front USB Type-C® (USB 3.2 Gen 2x2), 1 x Front USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Front HDMI header, 8 x Fan/Water Pump Headers, 3 x Addressable RGB Gen2 headers, 1 x RGB LED strip header | Internal Headers |
| WIFI EZ-Plug, EZ-Latch Plus (PCIe & M.2 Quick Release), EZ-Latch Click (Screwless M.2 Heatsink), PCIe UD Slot X | EZ-DIY Features |
| VRM Thermal Armor Advanced with Heatpipe, M.2 Thermal Guard L & Ext, 7 W/mK thermal conductivity pads | Thermal Solution |
| 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, ACPI 5.0 | BIOS |
| Support for Windows 11 64-bit | Operating System |
